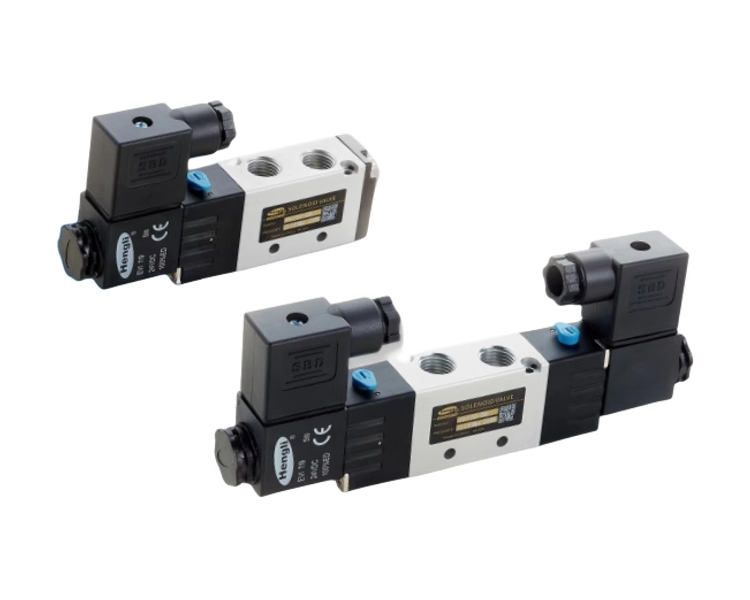

| Model number | H4V110-M5 H4V120-M5 | H4V130C-M5
H4V130P-M5
H4V130E-M5 | H4V110-06
H4V120-06 | H4V130C-06
H4V130E-06
H4V130P-06 |
|
|
| Working medium | Air (filtered by 40μm or more) |
| Actuating mode | Internal guide or external guide |
| Nozzle diameter[Note 1] | Inlet air = outlet air =M5 | Inlet air = outlet air =PT1/8 |
| Effective cross-sectional area (CV)[Note 4] | H4V110-06,H4V120-06:10.2mm2(Cv=0.6)
H4V130C-06:8.6mm2(Cv=0.51) |
|
| Place number | Two persons and five persons | Three persons and five senses | Two persons and five persons | Three persons and five senses |
| Service pressure range | 0.15~0.8MPa(21~114psi) |
| Guarantee pressure resistance | 1.2MPa(175psi) |
| Operating temperature | -20~70℃ |
| Body material | Aluminium alloy |
| oiling[Note 2] | It isn't necessary |
| Maximum operating frequency[Note 3] | 5 times per second | 3 times per second | 5 times per second | 3 times per second |
| Weight (g) | H4V110-M5：120
H4V120-M5：175 | 200 | H4V110-06:120
H4V120-06:175 | 200 |
|
| Model number | H4V210-06
H4V220-06 | H4V230C-06
H4V230E-06
H4V230P-06 | H4V210-08
H4V220-08 | H4V230C-08
H4V230E-08
H4V230P-08 |
|
|
| Working medium | Air (filtered by 40μm or more) |
| Actuating mode | Internal guide or external guide |
| Nozzle diameter[Note 1] | Intake = outlet = exhaust =PT1/8 | Intake = Outlet =PT1/4 Exhaust =PT1/8 |
| Effective cross-sectional area (CV)[Note 4] | H4V210-08,H4V220-08:17.0mm2(Cv=1.0)
H4V230C-08:13.6mm2(Cv=0.8) |
|
| Place number | Two persons and five persons | Three persons and five senses | Two persons and five persons | Three persons and five senses |
| Service pressure range | 0.15~0.8MPa(21~114psi) |
| Guarantee pressure resistance | 1.2MPa(175psi) |
| Operating temperature | -20~70℃ |
| Body material | Aluminium alloy |
| lubrication[Note 2] | It isn't necessary |
| Maximum operating frequency[Note 3] | 5 times per second | 3 times per second | 5 times per second | 3 times per second |
| Weight (g) | H4V210-06:220
H4V220-06:320 | 360 | H4V210-08:220
H4V220-08:320 | 360 |
|
| Model number | H4V310-08
H4V320-08 | H4V330C-08
H4V330E-08
H4V330P-08 | H4V310-10
H4V320-10 | H4V330C-10
H4V330E-10
H4V330P-10 |
|
|
| Working medium | Air (filtered by 40μm or more) |
| Actuating mode | Internal guide or external guide |
Nozzle diameter
[Note 1] | Intake = outlet = exhaust =PT1/4 | Inlet = Outlet =PT3/8 Exhaust =PT1/4 |
Effective cross-sectional area (CV)
[Note 4] | H4V310-10,H4V320-10:28.0mm2(Cv=1.65)
H4V330C-10:21.3mm2(Cv=1.25) |
|
| Number of positions | Two persons and five persons | Three persons and five senses | Two persons and five persons | Three persons and five senses |
| Service pressure range | 0.15~0.8MPa(21~114psi) |
| Guarantee pressure resistance | 1.2MPa(175psi) |
| Operating temperature | -20~70℃ |
| Body material | Aluminium alloy |
| lubrication[Note 2] | It isn't necessary |
| Maximum operating frequency[Note 3] | 4 times per second | 3 times per second | 4 times per second | 3 times per second |
| Weight (g) | H4V310-08:310
H4V320-08:400 | 450 | H4V310-10:310
H4V320-10:400 | 450 |
|
| Model number | H4V410-15 | H4V420-15 | H4V430C-15 | H4V430E-15 | H4V430P-15 |
| Working medium | Air (filtered by 40μm or more) |
| Actuating mode | Internal guide or external guide |
| Nozzle diameter[Note 1] | Intake = outlet = exhaust =PT1/2 |
Effective cross-sectional area (CV)
[Note 4] | H4V410-15,H4V420-15:48.0mm2(Cv=2.82)
H4V430C-15:40.0mm2(Cv=2.35) |
|
| Number of positions | Two persons with five connections | Three persons and five senses |
| Service pressure range | 0.15~0.8MPa(21~114psi) |
| Guarantee pressure resistance | 1.2MPa(175psi) |
| Operating temperature | -20~70℃ |
| Body material | Aluminium alloy |
| lubrication [Note 2] | It isn't necessary |
| Maximum operating frequency[Note 3] | 3 times per second |
| Weight (g) | 590 | 720 | 770 |
|
|
[Note 1] The nozzle type has G teeth and NPT teeth to choose from.
[Note 2] If there is oil lubrication, do not stop halfway, the recommended lubricating oil is ISO VG32 or the same level of oil.
[Note 3] The highest operating frequency is no-load.
[Note 4] Effective cross-sectional area and Cv values are calculated based on test flow data.
| Base type | 100M | 200M | 300M | 400M |
| Working medium | Air (filtered by 40μm or more) |
| Operating temperature | -20~70℃ |
| Applicable valve body type | H4V100 series | H4V200 series | H4V300 series | H4V400 series |
| H4V | 1 | 10 | 6 | A | - | - | W |
| - | ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ |
| ① | Serial code | 1 | 100series |

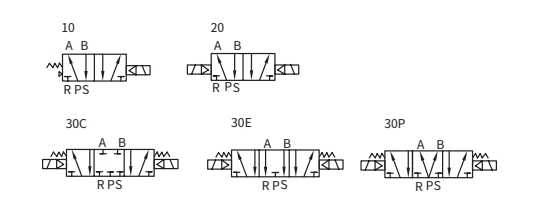

| ② | Electronic control system | 10 | Dual position single electric control | 20 | Dual position dual electric control | 30C | Three position dual electric control medium enclosed type | 30E | Three position dual electric control medium exhaust type | 30P | Three position double electric control medium pressure type |
| ③ | Nozzle diameter | M5 | M5 | 06 | 1/8 |
| ④ | Standard voltage | A | AC220V | B | DC24V | C | AC110V | D | AC24V | E | DC12V |
| ⑤ | Connection mode | - | DIN socket type | I | Outlet type (note) |
| ⑥ | Dental code | - | PT tooth | G | G tooth | T | NPT tooth |
| ⑦ | Pilot mode | - | Inner leader | W | External leader |
| H4V | 2 | 10 | 6 | A | - | - | W |
| - | ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ |
| ① | Serial code | 2 | 200 series |
| ② | Electronic control system | 10 | Dual position single electric control | 20 | Dual position dual electric control | 30C | Three position dual electric control medium enclosed type | 30E | Three position dual electric control medium exhaust type | 30P | Three position double electric control medium pressure type |
| ③ | Nozzle diameter | 06 | 1/8 | 08 | 1/4 |
| ④ | Standard voltage | A | AC220V | B | DC24V | C | AC110V | D | AC24V | E | DC12V |
| ⑤ | Connection mode | - | DIN socket type | I | Outlet type (note) |
| ⑥ | Dental code | - | PT tooth | G | Gtooth | T | NPT tooth |
| ⑦ | Pilot mode | - | Inner leader | W | External leader |
| H4V | 3 | 10 | 8 | A | - | - | W |
| - | ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ |
| ① | Serial code | 3 | 300 series |
| ② | Electronic control system | 10 | Dual position single electric control | 20 | Dual position dual electric control | 30C | Three position dual electric control medium enclosed type | 30E | Three position dual electric control medium exhaust type | 30P | Three position double electric control medium pressure type |
| ③ | Nozzle diameter | 08 | 1/4 | 10 | 3/8 |
| ④ | Standard voltage | A | AC220V | B | DC24V | C | AC110V | D | AC24V | E | DC12V |
| ⑤ | Connection mode | - | DIN socket type | I | Outlet type (note) |
| ⑥ | Dental code | - | PT tooth | G | G tooth | T | NPT tooth |
| ⑦ | Pilot mode | - | Inner leader | W | External leader |
| H4V | 4 | 10 | 15 | A | - | - | W |
| - | ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ |
| ① | Serial code | 4 | 400 series |
| ② | Electronic control system | 10 | Dual position single electric control | 20 | Dual position dual electric control | 30C | Three position dual electric control medium enclosed type | 30E | Three position dual electric control medium exhaust type | 30P | Three position double electric control medium pressure type |
| ③ | Nozzle diameter | 15 | 1/2 |
| ④ | Standard voltage | A | AC220V | B | DC24V | C | AC110V | D | AC24V | E | DC12V |
| ⑤ | Connection mode | - | DIN socket type | I | Outlet type (note) |
| ⑥ | Dental code | - | PT tooth | G | G tooth | T | NPT tooth |
| ⑦ | Pilot mode | - | Inner leader | W | External leader |
Note: The outlet length of the outlet type is 0.5m.
Base ordering code
| - | 100M | 2F | - |
| - | ① | ② | ③ |
| ① | Specification code | 100M | 100 series base | 200M | 200 series base | 300M | 300 series base | 400M | 400 series base |
| ② | Serial number code | 1F | 1 even | 2F | 2 even | ... | 16F | 16 even |
| ③ | Nozzle diameter | Blank | PT tooth | G | G tooth |
| T | NPT tooth |
Blind plate ordering code
| - | P | 100M | R2 |
| - | ① | ② | ③ |
| ① | Component code | P | module |
| ② | Specification code | 100M | 100 series base | 200M | 200 series base | 300M | 300 series base | 400M | 400 series base |
| ③ | Blind plate code | R2 | Blind plate for base |
[Note] 1, 100M, 200M series connection number to 16; 300M series connection number to 12; The number of 400M series to 8;
2. The ordering code includes two parts: base and blind plate. Base assembly includes base, base gasket and screw; The blind plate assembly comprises a blind plate and a screw.
